Round Hole Perforated Steel

Hole Patern

Perforated Sheet Aplication

Perforated Sheet Application

Menurut survei terbaru, kebanyakan lembaran berlubang diproduksi dengan lubang bulat. Mengapa? Peran putaran diproduksi relatif lebih mudah dengan efek estetika. jenis plat lubang bulat bisa bertahan lebih lama dan umum di gunakan. yang membuat lembaran lubang bulat lebih murah daripada lembaran berlubang lainnya. Karena itu, pola lubang bulat menjadi bentuk yang paling populer.

A piece of stainless steel round hole perforated sheet with a metal coin on its surface.
RHPS-1: Stainless steel round hole perforated sheet.

RHPS-2:  Round hole perforated sheet.

Plat lubang bulat menawarkan pilihan ukuran lubang, alat pengukur, bahan dan ukuran lembaran untuk semua jenis aplikasi. Sebagai contoh:

Round hole perforated sheet untuk berbagai macam fungsi:

  • Panel dinding dan langit2.
  • Kerai untuk shading ruangan.
  • Saringan untuk menyaring biji, batu dan bahan curah lainnya.
  • Tempat cuci tangan dekoratif.
  • Pagar pelindung dan peralatan mesin.
  • Panel balkon dan tangga .
  • Lembaran ventilasi, seperti kisi udara.

Ruangan yang berlubang dapat memberi privasi bagi penghuni bangunan tanpa adanya penyumbatan pandangan. Sementara itu, fitur kontrol iklim interior untuk mengurangi beban kondisi udara dan menghemat energi untuk sebagian besar.

A perforated steel sheet with round holes 5.00 mm diameter, pitch 6.5 mm, perforated plate thickness 1.0 mm.
RHPS-3: Round hole perforated sheet with holes 5.00 mm diameter, pitch 6.5 mm, perforated plate thickness 1.0 mm. Materials can be available in steel, stainless steel, aluminum and copper.

Lembaran plat lubang jenis bulat kami suplai:

Bahan:

Kami mengkhususkan diri dalam membuat lembaran plat jenis bulat dalam berbagai bahan berkualitas tinggi termasuk baja (baja ringan atau baja karbon, dilapisi galvanis atau galvalum), stainless steel, aluminium, tembaga dan kuningan atau bahan lainnya sesuai permintaan Anda.

Pola lubang:

Ada tiga cara pengaturan lubang bulat yang diadopsi: tipe lurus square, tipe staggered 60 ° dan tipe 45 staggered seperti ditunjukkan pada gambar berikut:



Perforated sheet with round holes in straight, 45° and 60° staggered rows

Generally, the 60° staggered type is the strongest, most versatile one with high cost effectiveness.

Thickness:
Gauge 3 to 36 or as your requirements.

Perforated sheet specification – Round hole
Description Hole Size
(mm)		 Pitch
(mm)		 Open Rate Sheet Thickness
0.4
mm		 0.5
mm		 0.8
mm		 1.0
mm		 1.2
mm		 1.5
mm		 2.0
mm		 2.5
mm		 3.0
mm		 4.0
mm		 5.0
mm		 6.0
mm
R0.8 T2 0.80 2.00 15% * * *
R1 T2 1.00 2.00 23% * * * *
R1.2 T2.25 1.20 2.25 26%   * * *
R1.2 T2.5 1.20 2.50 21%   * * *
R1.5 T2.75 1.50 2.75 27%   * * * *
R1.5 T3 1.50 3.00 23%   * * * *
R1.8 T3.5 1.80 3.50 24%   * * * * *
R2 T3 2.00 3.00 40%   * * *
R2 T3.5 2.00 3.50 30%   * * * *
R2 T4 2.00 4.00 23%   * * * * *
R2.5 T3.5 2.50 3.50 46%   * * * * * *
R2.5 T4 2.50 4.00 35%   * * * * * *
R2.5 T4.5 2.50 4.50 28%   * * * * * *
R2.5 T5 2.50 5.00 23%   * * * * * *
R3 T5 3.00 5.00 33%   * * * * * * *
R3 T6 3.00 6.00 23%   * * * * * * *
R3.5 T5 3.50 5.00 44%   * * * * *
R4 T5 4.00 5.00 58%   * * *
R4 T6 4.00 6.00 40%   * * * * * *
R4 T8 4.00 8.00 23%   * * * * * * * *
R5 T7 5.00 7.00 46%   * * * * * *
R5 T8 5.00 8.00 35%   * * * * * * * *
R5 T10 5.00 10.00 23%   * * * * * * * * *
R5 T2.5 5.00 25.00 4%   * * * * * * * * *
R6 T8.5 6.00 8.50 45%   * * * * * * *
R6 T9 6.00 9.00 40%   * * * * * * * *
R6 T10 6.00 10.00 33%   * * * * * * * * * *
R7 T10 7.00 10.00 44%       * * * * * * * *
R8 T8 8.00 11.00 48%       * * * * * * * *
R8 T8 8.00 12.00 40%       * * * * * * * * *
R8 T8 8.00 15.00 26%       * * * * * * * * *
R10 T13 10.00 13.00 54%       * * * * * * * *
R10 T14 10.00 14.00 46%       * * * * * * * *
R10 T15 10.00 15.00 40%       * * * * * * * * *
R10 T18 10.00 18.00 28%       * * * * * * * * *
R12 T16 12.00 16.00 51%       * * * * * * * *
R12 T17 12.00 17.00 45%       * * * * * * * * *
R15 T20 15.00 20.00 51%       * * * * * * * * *
R15 T21 15.00 21.00 46%       * * * * * * * * *
R20 T25 20.00 25.00 58%       * * * * * * * * *
R20 T27 20.00 27.00 50%       * * * * * * * * *
R20 T28 20.00 28.00 46%       * * * * * * * * *
R20 T30 20.00 30.00 40%       * * * * * * * * *
R25 T34 25.00 34.00 49%       * * * * * * * * *
Round hole perforated sheet is manufacturing in the workshop
RHPS-4: Round hole perforated sheet is manufactured under strict quality control.
Some pieces of round hole perforated stainless steel sheets are placed on the ground
RHPS-5: Round hole perforated stainless steel sheets

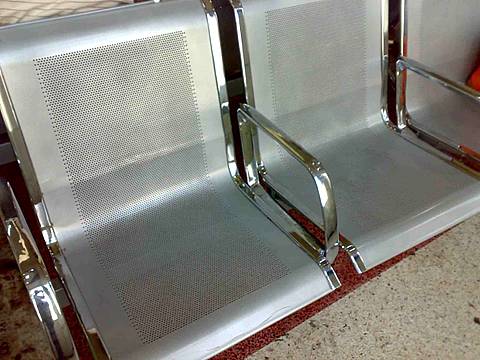

Metal chairs made of round hole perforated steel sheets
RHPS-6: Round hole perforated sheet for furniture manufacturing

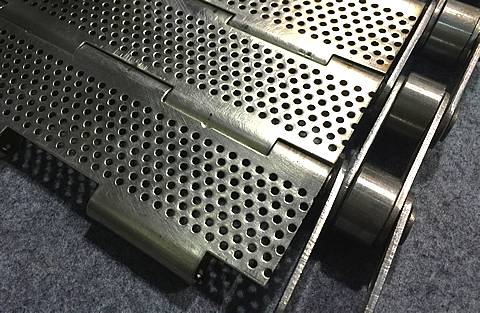

A front view of the conveyor belt made of round perforated sheet.
RHPS-7: Conveyor belt can be made of round hole perforated sheet.

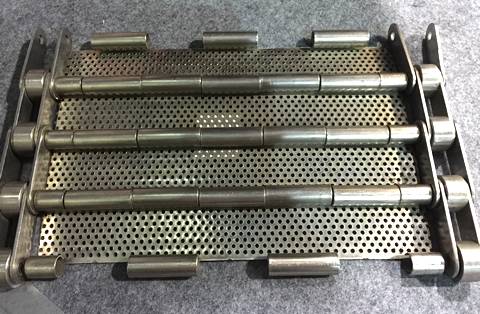

A reverse side of the stainless steel conveyor belt with perforated round hole.
RHPS-8: Stainless steel conveyor belt with perforated round hole.

RHPS-9: This kind of round hole perforated sheet with straight hole is usually used as decorative mesh.
The picture shows many pieces of perforated sheets with extremely small round holes on the surface.
RHPS-10: Perforated sheets can be made with this kind of extremely small hole sizes.
There is one piece of perforated sheet with metal edge, and the round holes are raised and flattened type.
RHPS-11: Round holes of the perforated sheet can be made into raised & flattened types arranged in a certain order.

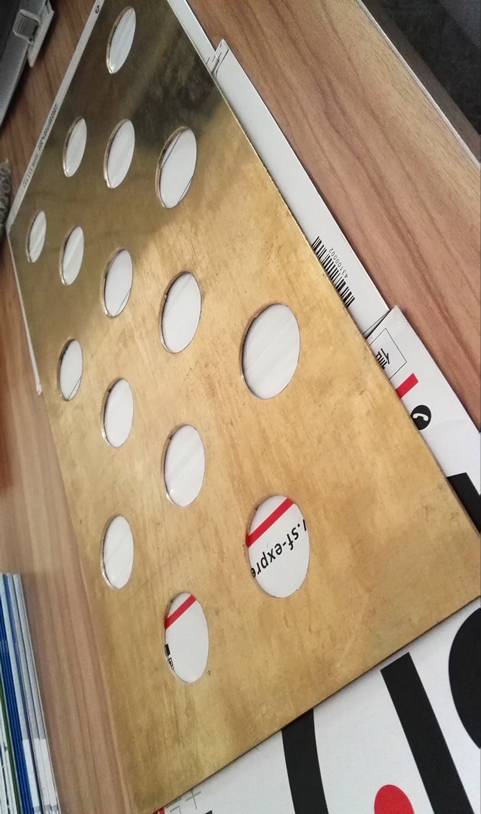

There is one brass perforated sheet, the round holes has medium size diameters.
RHPS-12: This brass perforated sheet has round holes with same diameters

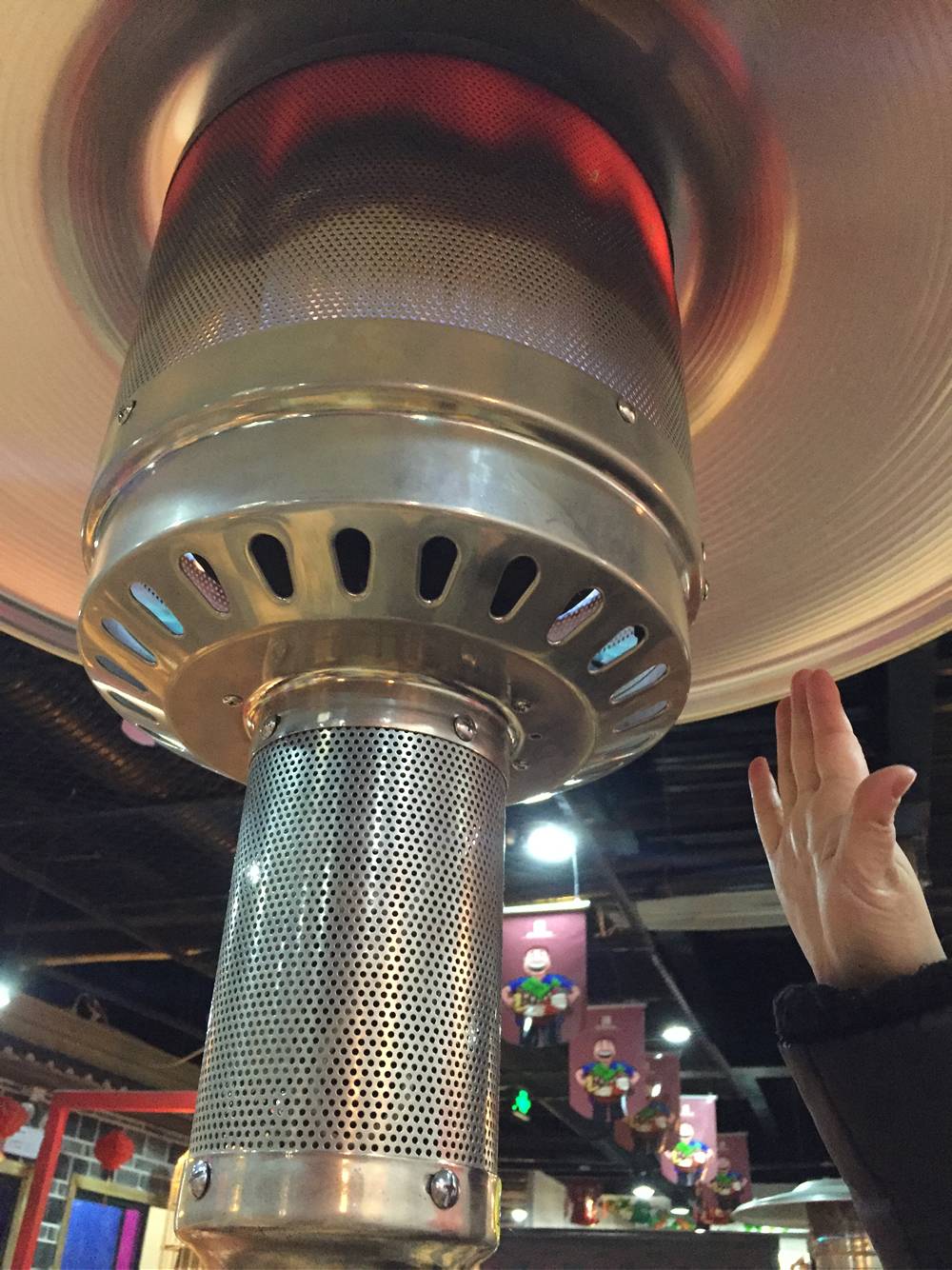

A hand is warmed by a round hole perforated stove with flames in a theme restaurant.
RHPS-13: Stove can be made of round hole perforated sheet.
